HVAC System Parts: A Complete Guide for Homeowners

A well-maintained HVAC system lasts up to 50% longer (without surging bills and costly breakdowns). That kind of reliability starts with understanding your HVAC system parts.

This guide walks you through major components, supporting accessories, and average maintenance costs to keep your house efficient and cozy.

What Are the Main Parts of an HVAC System?

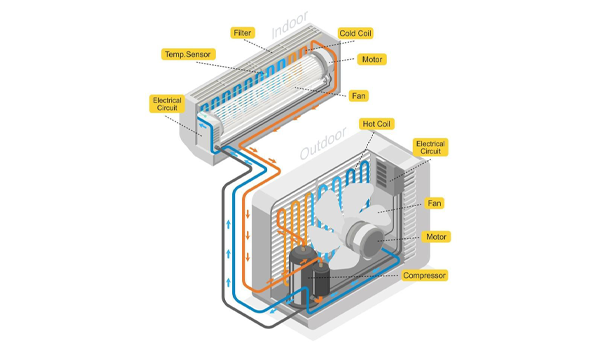

A typical central HVAC system heats, cools, ventilates, and distributes air throughout your home. The essential HVAC components that enable them to do so are:

• Heating equipment like the furnace, heat exchanger, heat pump, and boilers
• Cooling equipment like the evaporator coil, condenser coil, compressor, and expansion valve
• Air distribution parts like air handler, blower motor, ductwork, vents
• Controls like the thermostat or control systems (for larger/commercial setups)
• Refrigerant and cycle parts
• Air ventilation and filtration components

An HVAC inspection examines all of these core components to find out every possible issue.

Major HVAC System Components Explained

The furnace, AC, and thermostat may be the stars, but several behind-the-scenes parts play equally vital roles. Let’s get to know these HVAC system parts better:

• Furnace: The furnace is the heart of most heating systems. It burns natural gas, propane, oil, or uses electricity to create heat, and then pushes it into your home with a blower fan. Think of the furnace as the engine of the HVAC; when the thermostat calls for heat, it starts warming air before sending it through the ductwork.

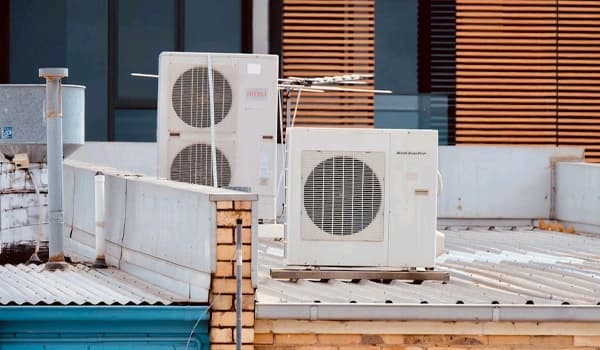

• Air Conditioner Unit: This is the box sitting outside that removes heat from the house and dumps it outside. Inside this unit, the compressor and condenser coil cool refrigerant, which cycles back indoors to absorb heat again. So, it doesn’t make cold air; it simply moves unwanted heat out.
• Heat Exchanger: Among HVAC unit parts, the heat exchanger is a metal chamber inside the furnace that transfers heat from burning fuel to the air circulating in your home. Since heat exchangers keep harmful gases (like CO) separated from the indoor air, they’re included in every HVAC inspection checklist, because the tiniest cracks in them can be dangerous.
• Evaporator Coil: This coil is inside the indoor unit (often near the furnace). There is refrigerant inside the coil that absorbs heat from the warm indoor air passing over it. So, it cools the air before it’s blown through the ducts.
• Condenser Coil: As mentioned, this is one of the HVAC components inside the outdoor unit. When the refrigerant absorbs the heat indoors, it travels to this coil and releases the heat into the outdoor air with the help of a fan. The refrigerant then cools back into a liquid, ready to repeat the cycle.
• Refrigerant Lines: These insulated copper tubes act as the arteries of the system and move the refrigerant between other parts of HVAC system. (Meaning the indoor evaporator coil and the outdoor condenser coil)
• Ductwork: This is the network of metal or flexible tubes running through walls, ceilings, and floors. They carry warm or cool air from the furnace or AC to each room and then return the used air for reconditioning.
• Thermostat: The thermostat is known as the “brain” among HVAC system parts, a control center that you interact with the most. It measures indoor temperature and tells the furnace or AC when to turn on/off. Basic thermostats let you set a temperature, but smart models pick up on your schedule and automatically adjust for comfort and savings.

Supporting HVAC Parts and Accessories

Beyond the main HVAC unit parts, there are also a few supporting accessories that determine how healthy, clean, and efficient your indoor air will be. They are:

• Air Filters: They trap dust, pollen, pet hair, other airborne particles, and allergens before the air circulates through your home. Air filters must be cleaned and changed regularly to keep the system running efficiently.
• Vents and Registers: They are the visible end of your HVAC system, guiding conditioned air into each room and letting stale air return for re-treatment. If you have adjustable registers, you can control how much air flows into each space. But bear in mind that closing too many can stress the system.
• Humidifier/Dehumidifier: The humidifier adds moisture to dry winter air that helps protect your skin, furniture, and even wood floors from cracking. The dehumidifier, on the other hand, absorbs excess moisture out of sticky summer air to prevent mold and musty odors.
• Blower Motor: This is a powerhouse fan that pushes heated/cooled air from the main HVAC system parts through the ducts and into your living spaces. Blower motors run at a single speed or have a variable speed for more comfort and energy saving.

How Much Do HVAC Parts Cost to Replace?

The average cost of replacing HVAC components ranges from $150-$500 for small items (like capacitors or contactors) to $1,000-$2,000 for major parts (like evaporator or condenser coils). Also, most manufacturer warranties cover parts for 5-10 years, but labor is rarely included, so expect to pay for the work even if the part is free.

Other factors that affect replacement cost include:

• Type, size, age, and condition of system (learn about common types of HVAC systems here)
• Using OEM vs. aftermarket parts
• Labor time and accessibility
• Time of year and demand (summer/winter = higher rates)
• Local cost of living and regional variability
• Refrigerant type for recharging services (e.g., R-22 costs more)
• Contractor’s policy on diagnostic fees and quotes

Why Understanding HVAC Parts Matters

As a homeowner, knowing HVAC system parts (how they work, what they do) allows you to spot early signs of trouble, and make informed decisions about maintenance as well as upgrades.

You’ll be able to reduce HVAC inspection cost and repair expenses as well, know what’s essential, what can wait, and how to keep your system efficient for longer.

FAQ

What is the most expensive part of an HVAC system?

The compressor is generally the most expensive part to replace.

How often should HVAC parts be replaced?

There’s no specific replacement frequency for replacing HVAC unit parts. Most full systems should be replaced every 10-15 years. For individual parts, it can be within 10-15 years (like compressors) or longer (furnaces), depending on the maintenance, usage, etc.

Can I replace HVAC parts myself?

No. You need to hire expert technicians to safely and reliably replace the parts. The air filters are the only common exception!

What parts of HVAC require the most maintenance?

Aside from air filters, coils (condenser and evaporator), the blower fan, and motor usually need regular inspection and cleaning.

Final Thoughts: Know Your HVAC System Inside Out

As of 2025, nearly 68% of Canadian households rely on air conditioning or heat pumps (up from 64% in 2021). If your home depends on HVAC comfort too, use this guide as your first step to ensure consistent indoor comfort no matter the season. Stay cozy and healthy.
